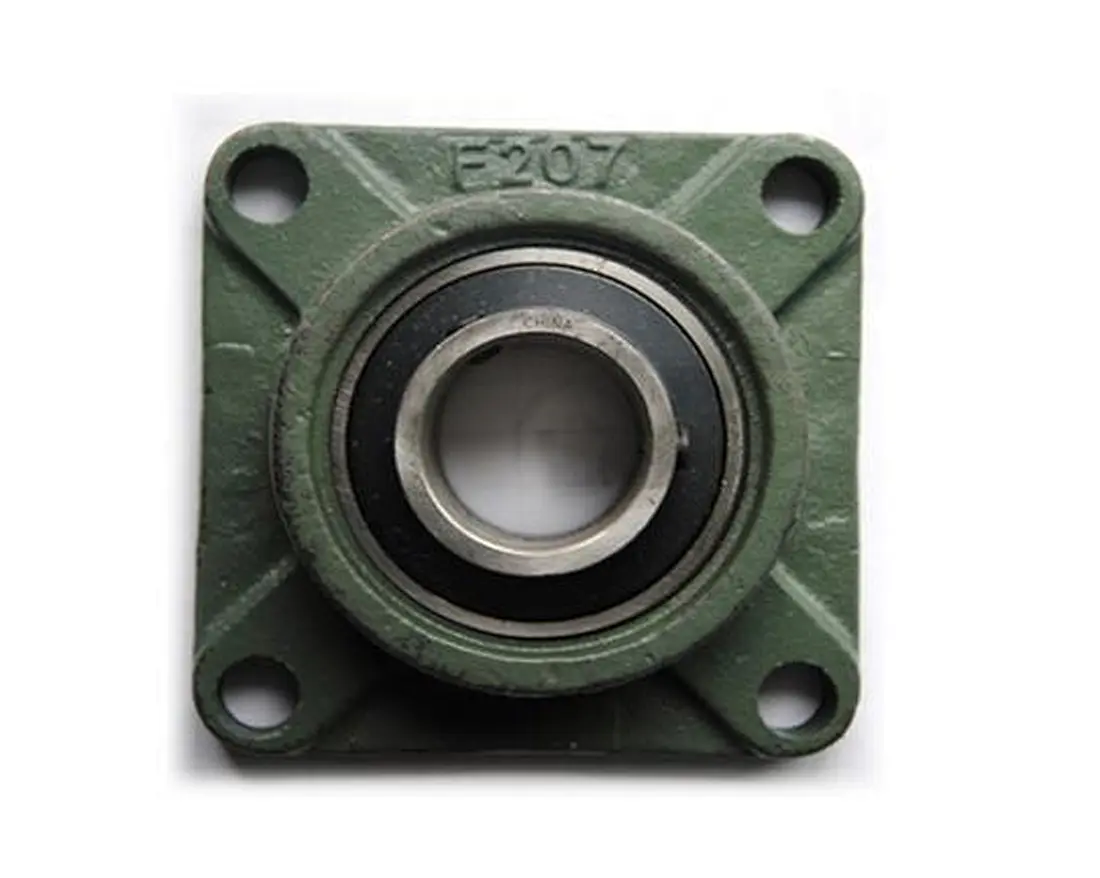

Pillow Block Bearings

UCF200 Series

Quantity:

Part No:UCF200 Series
Product Parameters:

Bearing Unit No.	Shaft Dia d		Dimensinons(mm)											Bolt Used		Bearing No.	Housing No.	Housing
			a	e	i	g	l	s	t	z1	z	Bi	n	(mm)	(in)			kg
	(in)	(mm)
UCF201-8	1/2	12	76	54	15	11	25.5	11.5			31	26	10	M10	3/8	UC201-8	F203	0.5
UCF202-9	9/16	15														UC202-9
UCF202-10	5/8	17														UC202-10
UCF203-11	11/16															UC203-11
UCF201																UC201
UCF202																UC202
UCF203																UC203
UCF201-8	1/2		86	64	15	12	25.5	12	2	40.5	33.3	31	12.7	M10	3/8	UC201-8	F204	0.6
UCF202-9	9/16															UC202-9
UCF202-10	5/8															UC202-10
UCF203-11	11/16															UC203-11
UCF204-12	3/4															UC204-12
UCF201		12														UC201
UCF202		15														UC202
UCF203		17														UC203
UCF204		20														UC204
UCF205-13	13/16	25	95	70	16	14	27	12	2	44.5	35.8	34.1	14.3	M10	3/8	UC205-13	F205	0.86
UCF205-14	7/8															UC205-14
UCF205-15	15/16															UC205-15
UCF205-16	1/1															UC205-16
UCF205																UC205
UCF206-17	1/16	30	108	83	18	14	31	12	2	49	40.2	38.1	15.9	M10	3/8	UC206-17	F206	1.1
UCF206-18	1/8															UC206-18
UCF206-19	3/16															UC206-19
UCF206-20	1/4															UC206-20
UCF206																UC206
UCF207-20	1/4	35	117	92	19	16	34	14	3	55	44.4	42.9	17.5	M12	7/16	UC207-20	F207	1.6
UCF207-21	5/16															UC207-21
UCF207-22	3/8															UC207-22
UCF207-23	7/16															UC207-23
UCF207																UC207
UCF208-24	1/2	40	130	102	21	16	36	16	3	62	51.2	49.2	19	M14	1/2	UC208-24	F208	1.9
UCF208-25	9/16															UC208-25
UCF208																UC208
UCF209-26	5/8	45	137	105	22	18	38	16	3	63	52.2	49.2	19	M14	1/2	UC209-26	F209	2.4
UCF209-27	11/16															UC209-27
UCF209-28	3/4															UC209-28
UCF209																UC209
UCF210-29	1-13/16	50	143	111	22	18	40	16	3	66.5	54.6	51.6	19	M14	1/2	UC210-29	F210	2.6
UCF210-30	7/8															UC210-30
UCF210-31	1-15/16															UC210-31
UCF210-32	1/2															UC210-32
UCF210																UC210
UCF211-32	1/2	55	162	130	25	20	43	19	4	71	58.4	55.6	22.2	M16	5/8	UC211-32	F211	3.5
UCF211-33	1/16															UC211-33
UCF211-34	1/8															UC211-34
UCF211-35	3/16															UC211-35
UCF211																UC211
UCF212-36	1/4	60	175	143	29	20	48	19	4	80	68.7	65.1	25.4	M16	5/8	UC212-36	F212	4.2
UCF212-37	5/16															UC212-37
UCF212-38	3/8															UC212-38
UCF212-39	7/16															UC212-39
UCF212																UC212
UCF213-40	1/2	65	187	149	30	20	50	19	4	83.5	69.7	65.1	25.4	M16	5/8	UC213-40	F213	5.3
UCF213-41	9/16															UC213-41
UCF213																UC213
UCF214-42	5/8	70	193	152	31	24	54	19			75.4	74.6	30.2	M16	5/8	UC214-42	F214	5.5
UCF214-43	11/16															UC214-43
UCF214-44	3/4															UC214-44
UCF214																UC214
UCF215-45	2-13/16	75	200	159	34	24	56	19			78.5	77.8	33.3	M16	5/8	UC215-45	F215	6.2
UCF215-46	7/8															UC215-46
UCF215-47	2-15/16															UC215-47
UCF215-48	1/3															UC215-48
UCF215																UC215
UCF216-50	1/8	80	208	165	34	24	58	23			83.3	82.6	33.3	M20	3/4	UC216-50	F216	7.7
UCF216																UC216
UCF217-52	1/4	85	220	175	36	26	63	23			87.6	85.7	34.1	M20	3/4	UC217-52	F217	9
UCF217																UC217
UCF218-56	1/2	90	235	187	40	26	68	23			96.3	96	39.7	M20	3/4	UC218-56	F218	11.3
UCF218																UC218
