China bearing Manufactuers

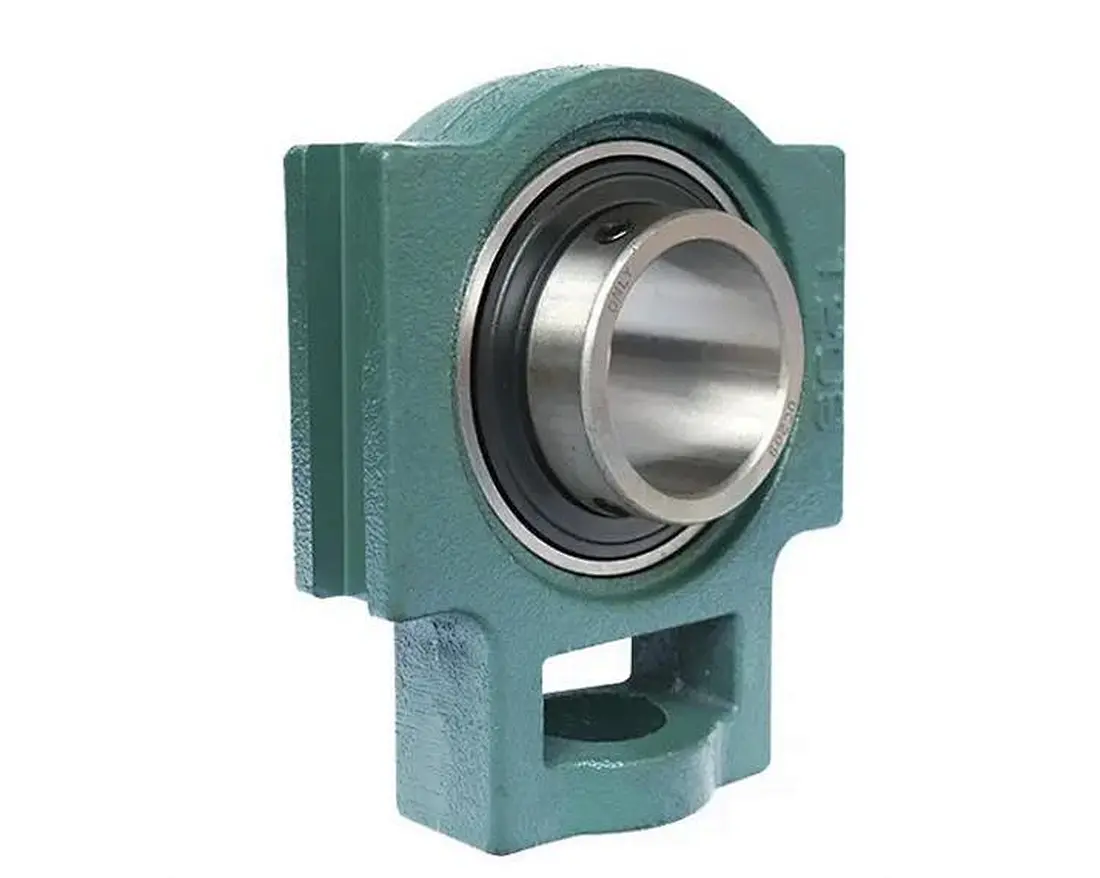

Pillow Block Bearings

UCT200 Series

Quantity:

Part No:UCT200 Series
Product Parameters:

Bearing Unit NO.	Shaft Dia d		Dimensions(mm)																	Bearing No.	Housing No.	Weight(kg)
	(in)	(mm)	o	g	p	q	s	b	k	e	a	w	j	l	h	t	z	Bi	n
UCT201-8	1/2	12	16	10	51	32	19	51	12	76	89	94	32	21	61	2	51	31	12.7	UC201-8	T204	0.56
UCT202-9	9/16	15																		UC202-9
UCT202-10	5/8	17																		UC202-10
UCT203-11	11/16	20																		UC203-11
UCT204-12																				UC204-12
UCT201																				UC201
UCT202																				UC202
UCT203																				UC203
UCT204																				UC204
UCT205-13	13/16	25	16	10	51	32	19	51	12	76	89	97	32	24	62	2	57	34.1	14.3	UC205-13	T205	0.63
UCT205-14	7/8																			UC205-14
UCT205-15	15/16																			UC205-15
UCT205-16	1/1																			UC205-16
UCT205																				UC205
UCT206-17	1/16	30	16	10	56	37	22	57	12	89	102	113	37	28	70	2	62	38.1	15.9	UC206-17	T206	0.95
UCT206-18	1/8																			UC206-18
UCT206-19	3/16																			UC206-19
UCT206-20	1/4																			UC206-20
UCT206																				UC206
UCT207-20	1/4	35	16	13	64	37	22	64	12	89	102	129	37	30	78	3	72	42.9	17.5	UC207-20	T207	1.09
UCT207-21	5/16																			UC207-21
UCT207-22	3/8																			UC207-22
UCT207-23	7/16																			UC207-23
UCT207																				UC207
UCT208-24	1/2	40	19	16	83	49	29	83	16	102	114	144	49	33	88	3	82	49.2	19	UC208-24	T208	1.72
UCT208-25	9/16																			UC208-25
UCT208																				UC208
UCT209-26	5/8	45	19	16	83	49	29	83	16	102	117	144	49	35	87	3	82	49.2	19	UC209-26	T209	1.75
UCT209-27	11/16																			UC209-27
UCT209-28	3/4																			UC209-28
UCT209																				UC209
UCT210-29	1-13/16	50	19	16	83	49	29	86	16	102	117	149	49	37	90	3	87	51.6	19	UC210-29	T210	1.75
UCT210-30	7/8																			UC210-30
UCT210-31	1-15/16																			UC210-31
UCT210-32	1/2																			UC210-32
UCT210																				UC210
UCT211-32	1/2	55	25	19	102	64	35	95	22	130	146	171	64	38	106	4	92	55.6	22.2	UC211-32	T211	2.8
UCT211-33	1/16																			UC211-33
UCT211-34	1/8																			UC211-34
UCT211-35	3/16																			UC211-35
UCT211																				UC211
UCT212-36	1/4	60	32	19	102	64	35	102	22	130	146	194	64	42	119	4	102	65.1	25.4	UC212-36	T212	3.4
UCT212-37	5/16																			UC212-37
UCT212-38	3/8																			UC212-38
UCT212-39	7/16																			UC212-39
UCT212																				UC212
UCT213-40	1/2	65	32	21	111	70	41	121	26	151	167	224	70	44	137	4	107	65.1	25.4	UC213-40	T213	5
UCT213-41	9/16																			UC213-41
UCT213																				UC213
UCT214-42	5/8	70	32	21	111	70	41	121	26	151	167	224	70	46	137			74.6	30.2	UC214-42	T214	4.7
UCT214-43	11/16																			UC214-43
UCT214-44	3/4																			UC214-44
UCT214																				UC214
UCT215-45	2-13/16	75	32	21	111	70	41	121	26	151	167	232	70	48	140			77.8	33.3	UC215-45	T215	5.1
UCT215-46	7/8																			UC215-46
UCT215-47	2-15/16																			UC215-47
UCT215-48	1/3																			UC215-48
UCT215																				UC215
UCT216-50	1/8	80	32	21	111	70	41	121	26	165	184	235	70	51	140			82.6	33.3	UC216-50	T216	5.5
UCT216																				UC216
UCT217-52	1/4	85	38	29	124	73	48	157	30	173	198	260	73	54	162			85.7	34.1	UC217-52	T217	7.4
UCT217																				UC217
UCT218-56	1/2	90	40	30	130	80	48	140	30	190	215	275	80	55	170			96	39.7	UC218-56	T218	10.2
UCT218																				UC218
