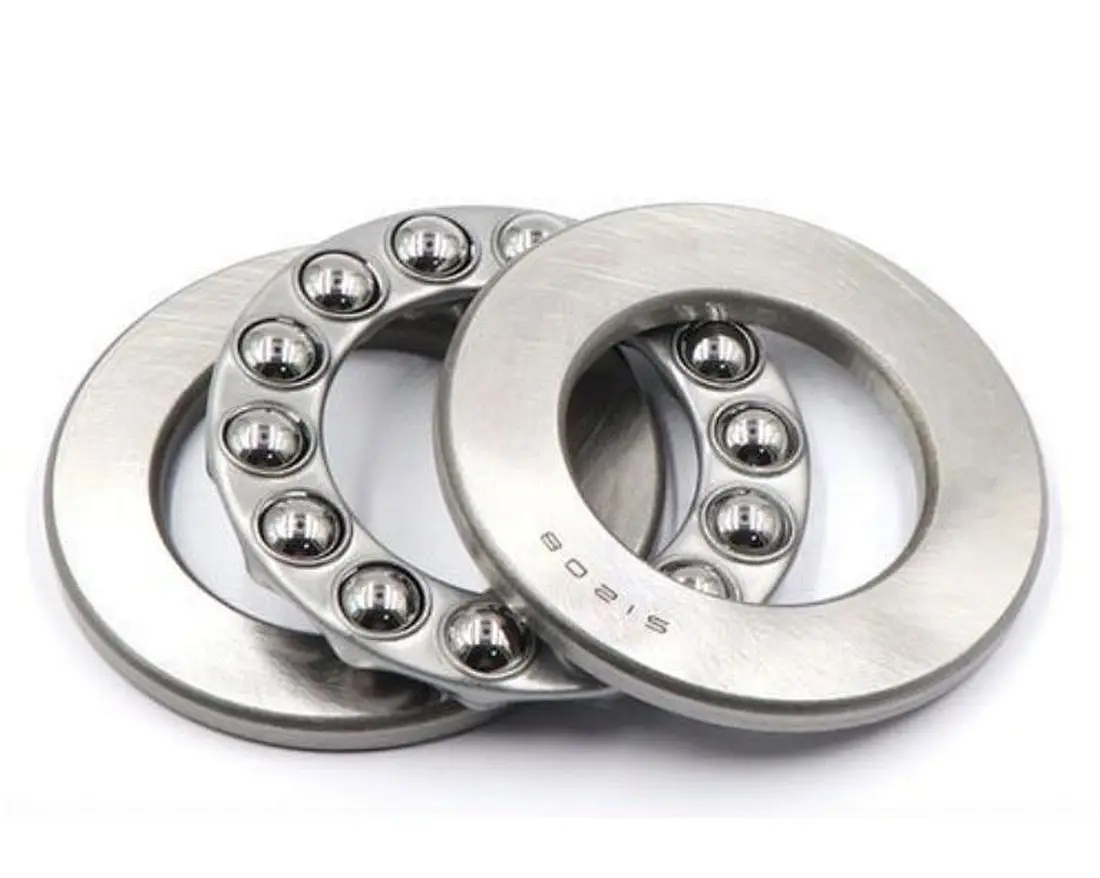

Thrust Ball Bearings
51000 Series
Quantity:
| ||||||||||||||||||||||||
| Bearing No. | Boundary dimensions(mm) | Basic load ratings(kN) | Mass(Kg) | |||
| d | D | H | Cr | Cor | (Approx.) | |
| 51100 | 10 | 24 | 9 | 9.95 | 15.3 | 0.02 |
| 51200 | 10 | 26 | 11 | 12.7 | 18.6 | 0.03 |
| 51101 | 12 | 26 | 9 | 10.4 | 16.6 | 0.022 |
| 51201 | 12 | 28 | 11 | 13.3 | 20.8 | 0.034 |
| 51102 | 15 | 28 | 9 | 10.6 | 18.3 | 0.024 |
| 51202 | 15 | 32 | 12 | 16.5 | 27 | 0.045 |
| 51103 | 17 | 30 | 9 | 11.4 | 21.2 | 0.026 |
| 51203 | 17 | 35 | 12 | 17.2 | 30 | 0.053 |
| 51104 | 20 | 35 | 10 | 15.1 | 29 | 0.039 |
| 51204 | 20 | 40 | 14 | 22.5 | 40.5 | 0.082 |
| 51105 | 25 | 42 | 11 | 18.2 | 39 | 0.06 |
| 51205 | 25 | 47 | 15 | 27.6 | 55 | 0.11 |
| 51305 | 25 | 52 | 18 | 34.5 | 60 | 0.12 |
| 51405 | 25 | 60 | 24 | 55.3 | 96.5 | 0.34 |
| 51106 | 30 | 47 | 11 | 19 | 43 | 0.069 |
| 51206 | 30 | 52 | 16 | 25.5 | 51 | 0.13 |
| 51306 | 30 | 60 | 21 | 37.7 | 71 | 0.26 |
