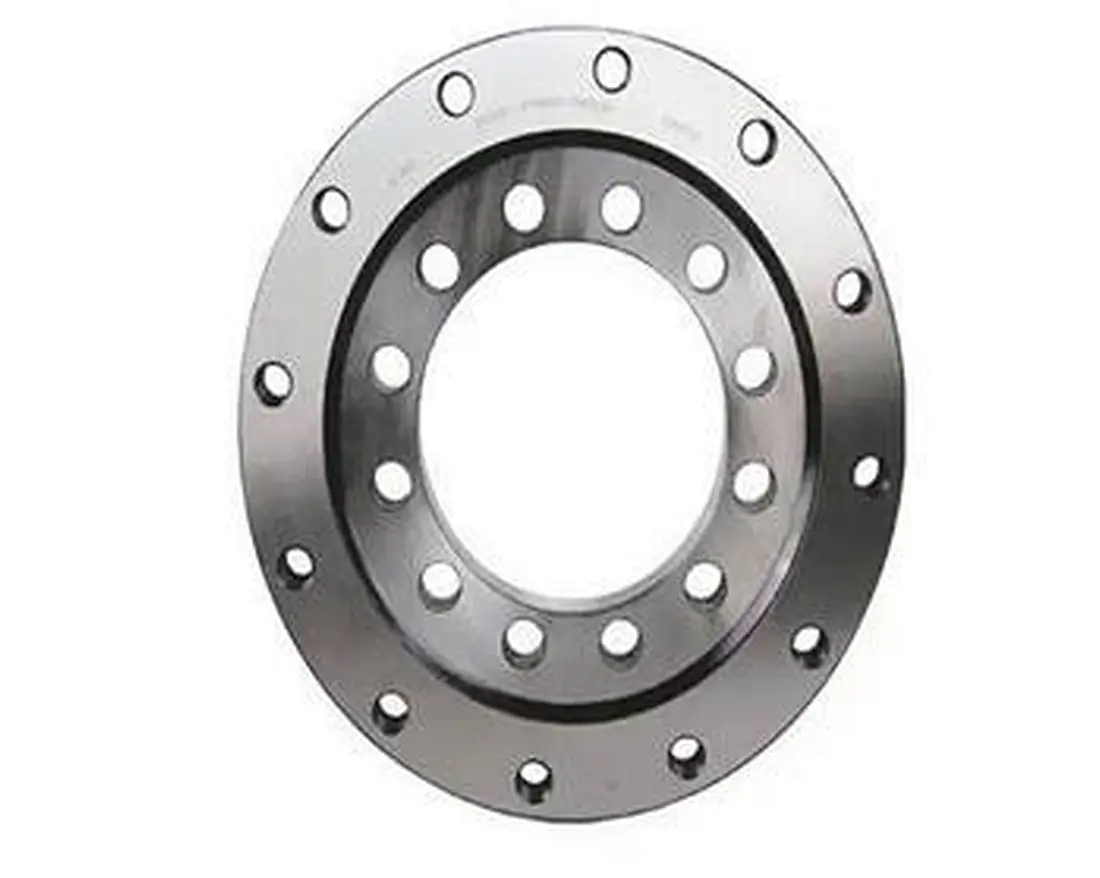

Single-Row Crossed Rollers Slewing Bearing (Standard Series HS)

Quantity:

Part No:Single-Row Crossed Rollers Slewing Bearing (Standard Series HS)

Product Parameters:

No.	Basic type			Configuration			Mounting Size				structure size			Ext Gear		Int Gear			Int Gear			Weight


	Toothless	Ext Toothless	Int Toothless	D	d	H	D1	D2	n	f	n1	H1	h	b	m	x	De	Z	x	De	Z	kg
1	HSB.25.625	HSW.25.625	HSN.25.625	725	525	80	685	565	18	18	3	68	12	60	5	1.4	751.9	146	0.35	498.8	101	170
		HSW.25.625A	HSN.25.625A												6	1.15	755.5	122	0.35	496.7	84
2	HSB.25.720	HSW.25.720	HSN.25.720	820	620	80	780	660	18	18	3	68	12	60	6	1.4	860.3	139	0.35	586.6	99	190
		HSW.25.720A	HSN.25.720A												8	1	861.1	104	0.35	582.3	74
3	HSB.30.820	HSW.30.820	HSN.30.820	940	705	95	893	749	24	20	4	83	12	70	6	1.4	980.6	159	0.35	664.5	112	220
		HSW.30.820A	HSN.30.820A												10	1	986.2	95	0.35	658	67
4	HSB.30.(32)880	HSW.30.(32)880	HSN.30.(32)880	1000	760	95	956	800	24	20	4	83	12	70	8	1.15	1048	127	0.35	718.2	91	230
		HSW.30.(32)880A	HSN.30.(32)880A												10	1	1046	101	0.35	707.9	72
5	HSB.30.(32)1020	HSW.30.(32)1020	HSN.30.(32)1020	1170	875	95	1120	930	24	22	4	80	15	70	8	1.4	1219	148	0.35	830.1	105	310
		HSW.30.(32)1020A	HSN.30.(32)1020A												10	1.15	1219	118	0.35	827.8	84
6	HSB.30.(40)1220	HSW.30.(40)1220	HSN.30.(40)1220	1365	1075	120	1310	1130	36	24	6	105	15	90	10	1.4	1425	138	0.35	1028	104	460
		HSW.30.(40)1220A	HSN.30.(40)1220A												12	1	1436	116	0.35	1017	86
7	HSB.35.(40)1250	HSW.35.(40)1250	HSN.35.(40)1250	1400	1090	120	1350	1150	36	26	6	105	15	90	10	-0.35	1443	143	0.35	1037	105	480
		HSW.35.(40)1250A	HSN.35.(40)1250A												12	1	1450	117	0.35	1037	86
8	HSB.35.(40)1435	HSW.35.(40)1435	HSN.35.(40)1435	1595	1278	120	1535	1335	36	26	6	105	15	90	12	1.15	1656	134	0.35	1221	103	570
		HSW.35.(40)1435A	HSN.35.(40)1435A												14	1	1661	115	0.35	1215	88
9	HSB.35.(50)1540	HSW.35.(50)1540	HSN.35.(50)1540	1720	1360	140	1660	1420	42	26	6	122	18	110	12	1.4	1781	144	0.35	1293	109	860
		HSW.35.(50)1540A	HSN.35.(50)1540A												14	1.15	1791	124	0.35	1285	93
10	HSB.35.(50)1700	HSW.35.(50)1700	HSN.35.(50)1700	1875	1525	140	1815	1585	42	29	6	122	18	110	14	1.15	1945	135	0.35	1453	105	880
		HSW.35.(50)1700A	HSN.35.(50)1700A												16	1.15	1951	118	0.35	1452	92
11	HSB.40.(50)1880	HSW.40.(50)1880	HSN.40.(50)1880	2100	1665	160	2030	1740	48	32	6	140	20	115	14	1.4	2190	152	0.35	1593	115	1290
		HSW.40.(50)1880A	HSN.40.(50)1880A												18	1.15	2195	118	0.35	1580	89
12	HSB.40.(50)2115	HSW.40.(50)2115	HSN.40.(50)2115	2325	1900	160	2245	1980	48	32	6	140	20	115	16	1.4	2407	146	0.35	1804	114	1430
		HSW.40.(50)2115A	HSN.40.(50)2115A												20	1.15	2418	117	0.35	1795	91
13	HSB.40.(60)2370	HSW.40.(60)2370	HSN.40.(60)2370	2600	2146	180	2520	2220	48	32	6	158	22	130	18	1.4	2707	146	0.35	2066	116	1950
		HSW.40.(60)2370A	HSN.40.(60)2370A												22	1.15	2704	119	0.35	2041	94
14	HSB.40.(60)2600	HSW.40.(60)2600	HSN.40.(60)2600	2835	2365	180	2750	2450	54	36	6	158	22	130	18	1.4	2942	159	0.35	2264	127	2180
		HSW.40.(60)2600A	HSN.40.(60)2600A												22	1.15	2947	130	0.35	2261	104
15	HSB.50.(60)2820	HSW.50.(60)2820	HSN.50.(60)2820	3085	2555	200	3000	2640	54	36	6	178	22	150	20	1.4	3188	155	0.35	2455	124	2520
		HSW.50.(60)2820A	HSN.50.(60)2820A												25	1.15	3198	124	0.35	2444	99
16	HSB.50.(60)3120	HSW.50.(60)3120	HSN.50.(60)3120	3400	2840	200	3310	2930	54	36		178	22	150	22	1.25	3507	155	0.35	2723	125	4000
		HSW.50.(60)3120A	HSN.50.(60)3120A												25	1.25	3510	136	0.35	2719	110
17	HSB.50.(60)3580	HSW.50.(60)3580	HSN.50.(60)3580	3920	3240	240	3820	3340	60	40	6	218	22	190	22	1.25	4036	179	0.35	3118	143	6700
		HSW.50.(60)3580A	HSN.50.(60)3580A												25	1.25	4036	157	0.35	3119	126
18	HSB.50.(60)4030	HSW.50.(60)4030	HSN.50.(604030	4370	3690	240	4270	3790	66	40	6	218	22	190	22	1.25	4521	201	0.35	3558	163	7700
		HSW.50.(60)4030A	HSN.50.(60)40300A												28	1.25	4522	157	0.35	3549	128
19	HSB.50.(60)4540	HSW.50.(60)4540	HSN.50.(60)4540	4860	4210	240	4760	4310	72	40	6	218	22	190	22	1.25	4983	222	0.35	4042	185	8760
		HSW.50.(60)4540A	HSN.50.(60)4540A												30	1.25	4993	162	0.35	4042	136
