China bearing Manufactuers

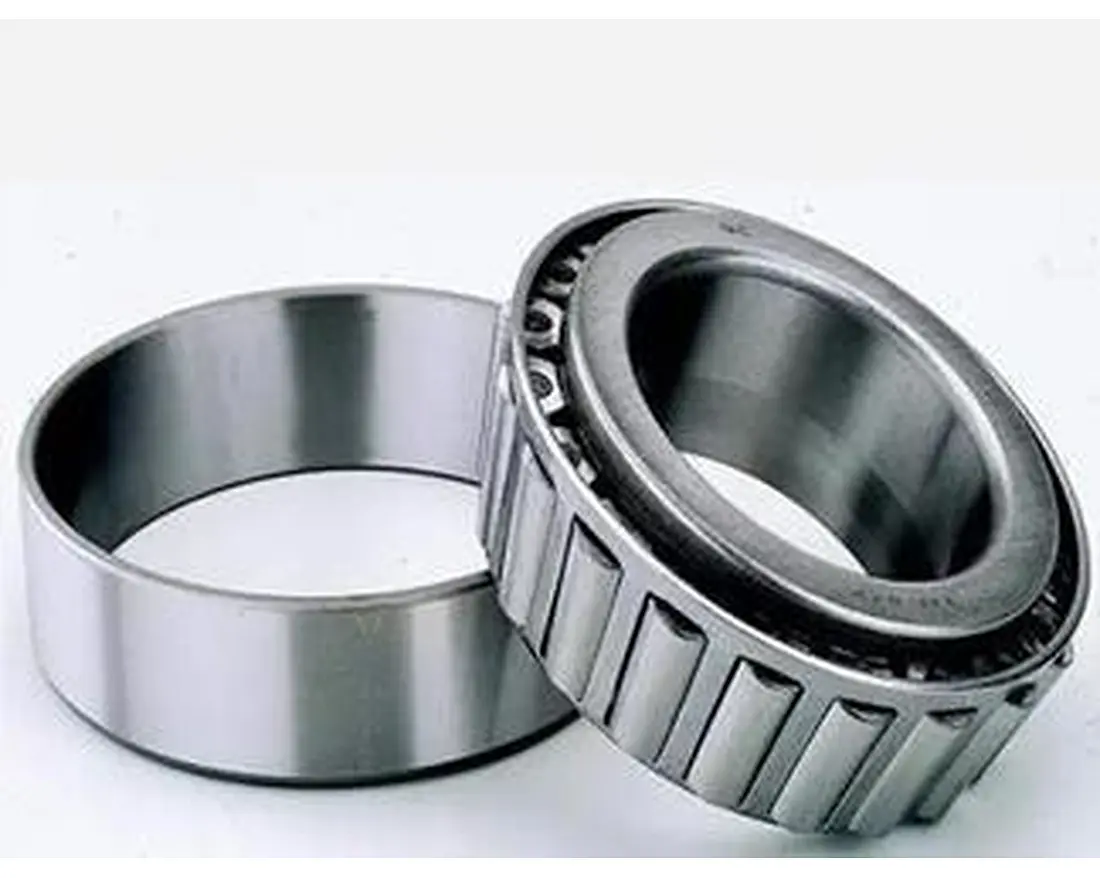

Inch Tapered Roller Bearings

Quantity:

Part No:Inch Tapered Roller Bearings
Product Parameters:

Dimensions(mm)							Basic load ratings		Bearing Number
Cone			Cup			T	(kN)
d	B	R	D	C	r	T	Cr	Cor
15.875	14.288	1.5	42.862	9.525	1.5	14.288	17.6	17.5	11590/20
22.225	20.168	1.5	52.388	14.288	1.5	19.368	40.5	43	1380/28
30	19.583	1.3	69.012	15.875	3.5	19.845	48.5	58	14117A/276
34.925	19.583	1.3	69.012	15.875	1.5	19.845	48.5	58	14137A/276
25.4	20.638	1.3	62	14.288	3.5	19.05	46.5	54	15100/245
25.4	20.638	2	61.912	14.288	0.8	19.05	46.5	54	15101/243
26.157	20.638	1.3	62	14.288	0.8	19.05	46.5	54	15103/245
26.988	20.638	1.3	62	14.288	0.8	19.05	46.5	54	15106/245
31.75	19.05	1.3	62	14.288		18.161	46.5	54	15123/245
31.75	20.638	1.3	62	14.288	3.5	19.05	46.5	54	15125/245
31.75	20.638	1.3	62	14.288	0.8	19.05	46.5	54	15126/245
41.275	17.462	1.5	73.025	12.7	3.5	16.667	46	55.5	18590/20
50.8	17.462	1.5	85	13.495	3.5	17.462	49.5	65	18790/20
41.275	23.02	0.8	76.2	17.462	3.5	22.225	65	80.5	24780/20
44.45	25.4	0.8	82.931	19.05	3.5	23.812	76	98	25580/20
45.618	25.4	0.8	82.931	19.05	3.5	23.812	76	98	25590/20
45.618	25.4	2	83.058	19.114	3.5	23.876	76	98	25590/22
46.038	25.4	0.8	82.931	19.05	3.5	23.812	76	98	25592/20
39.688	25.4	0.8	79.375	19.05	1.5	23.812	76.5	97.5	26880/22
36.487	25.654	3.3	76.2	19.05	1.5	23.812	73	90.5	2780/20
38.1	25.654	3.3	76.2	19.05	3.5	23.812	73	90.5	2788/20
38.1	23.698	1.5	80.035	18.512	0.8	24.608	67	82.5	27880/20
57.15	24.608	0.8	97.63	19.446	3.5	24.608	88.5	128	28682/22
34.925	23.812	3.3	73.025	17.462	0.8	22.225	62.5	75.5	2878/20
73.025	30.162	3.3	117.475	23.812	3.5	30.162	117	175	33287/462
46.038	21.692	1.3	85	17.462	3.5	20.638	69.5	79.5	359A/354A
50.8	22.225	1.3	88.9	16.513	1.5	20.638	76.5	90.5	368/362A
50.8	22.225	2	90	15.875	3.5	20	76.5	90.5	368A/362
50.8	30.302	3.3	93.264	23.812	3.5	30.162	102	134	3780/20
44.45	30.302	3.3	93.264	23.812	3.5	30.162	102	134	3782/20
57.15	21.946	0.8	96.838	15.875	2.3	21	78	96.5	387/382A
57.15	21.946	0.8	96.838	15.875	3.5	21	78	96.5	387A/382A
57.15	21.946	0.8	96.838	15.875	5	21	78	96.5	387AS/382A
38.1	29.083	1.5	88.5	22.225	3.5	26.988	95.5	107	418/414
82.55	33.338	3.3	133.35	26.195	3.5	33.338	153	235	47686/20
82.55	36.098	3.3	139.992	28.575	3.5	36.512	178	265	580/572
92.075	36.322	3.3	152.4	30.162	6.4	39.688	180	279	598A/592A
66.675	41.275	3.3	136.525	31.75	3.5	41.275	194	262	641/632
82.55	41.275	3.3	146.05	31.75	3.5	41.275	206	295	663/653
80.962	46.672	3.3	150.089	36.512	5	44.45	261	360	740/742
85.026	46.672	3.3	150.089	36.512	3.5	44.45	261	360	749/742
82.55	46.672	3.3	150.089	36.512	3.5	44.45	261	360	749A/742
88.9	48.26	3.3	161.925	38.1	3.5	47.625	270	385	759/752
66.675	38.354	1.5	122.238	29.718	3.5	38.1	187	244	HM212049/10
89.974	40	3.5	146.975	32.5	7	40	227	340	HM218248/10
38.1	28.575	3.3	82.55	23.02	0.8	29.37	87	117	HM801346/10
40.483	28.575	3.3	82.55	23.02	3.5	29.37	87	117	HM801349/10
44.45	29.37	3.3	88.9	23.02	3.5	30.162	93.5	125	HM803149/10
35.717	25.4	2.3	72.233	19.842	3.5	25.4	65	84.5	HM88648/10
34.925	25.4	2.3	72.233	19.842	2.3	25.4	65	84.5	HM88649/10
44.45	28.575	0.8	95.25	22.225	3.5	30.958	96	116	HM903249/10
38	17	1.3	63	13.5		17	38.5	52.5	JL69349/10
90	34	2.5	145	27	3	35	189	279	JM718149/10
25.4	14.732	1.3	50.292	10.668	1.3	14.224	28.8	34	L44643/10
26.988	14.732	1.3	50.292	10.668	3.5	14.224	28.8	34	L44649/10
29	14.732	1.3	50.292	10.668	3.5	14.224	28	35.5	L45449/10
34.988	16.764	1.3	59.974	11.938		15.875	35.5	47.5	L68149/11
45.242	19.812	0.8	73.431	15.748	3.5	19.558	54	76	LM102949/10
50.8	22.225	1.3	82.55	16.51	3.5	21.59	69.5	94	LM104949/11
17.462	14.605	1.3	39.878	10.668	1.3	13.843	23.8	24.2	LM11749/10
19.05	16.637	1.3	45.237	12.065	1.3	15.494	28.3	28.6	LM11949/10
21.986	16.637	1.3	45.974	12.065	1.3	15.494	29.6	34	LM12749/11
38.1	18.288	1.3	65.088	13.97		18.034	43.5	57	LM29748/10
40.988	18	1.5	67.975	13.5		17.5	46	62.5	LM300849/11
34.925	18.288	1.3	65.088	13.97		18.034	46.5	56	LM48548/10
34.925	18.288	1.3	65.088	13.97	0.8	18.034	46.5	56	LM48548A/10
41.275	19.812	0.8	73.431	14.732	3.5	19.558	56	69.5	LM501349/10
41.275	19.812	0.8	73.431	16.604	3.5	21.43	56	69.5	LM501349/14
45.242	19.842	0.8	77.788	15.08	3.5	19.842	57.5	73.5	LM603049/11
31.75	16.764	1.3	59.131	11.811		15.875	34.5	41	LM67048/10
22.606	15.5	1	47	12	1.5	15.5	27.5	32.5	LM72849/10
34.988	17	1.5	61.973	13.6	1.5	16.7	37	48	LM78349A/10A
22.225	18.288	1.3	50.005	13.97	1.3	17.526	38	39	M12648/10
21.43	18.288	1.3	50.005	13.97	1.3	17.526	38	39	M12649/10
41.275	25.654	3.3	82.55	20.193	3.5	26.543	80.5	104	M802048/11
25.4	19.431	1.5	57.15	14.732	1.5	19.431	42	48.5	M84548/10
25.4	21.433	1.5	64.292	16.67	1.5	21.433	51.5	64.5	M86643/10
30.162	21.433	1.5	64.292	16.67	1.5	21.433	51.5	64.5	M86649/10
33.338	22.225	1.5	68.262	17.462	0.8	22.225	56.5	71	M88048/10
28.575	22.225	3.3	73.025	17.462	0.8	22.225	56.5	68	02872/20
19.05	19.05	1.3	49.225	14.288	1.3	18.034	38.5	39	09067/195
19.05	19.05	1.5	49.225	17.462	1.3	21.209	38.5	39	09067/196
19.05	21.539	1.3	49.225	14.288	1.3	19.845	38.5	39	09078/195
